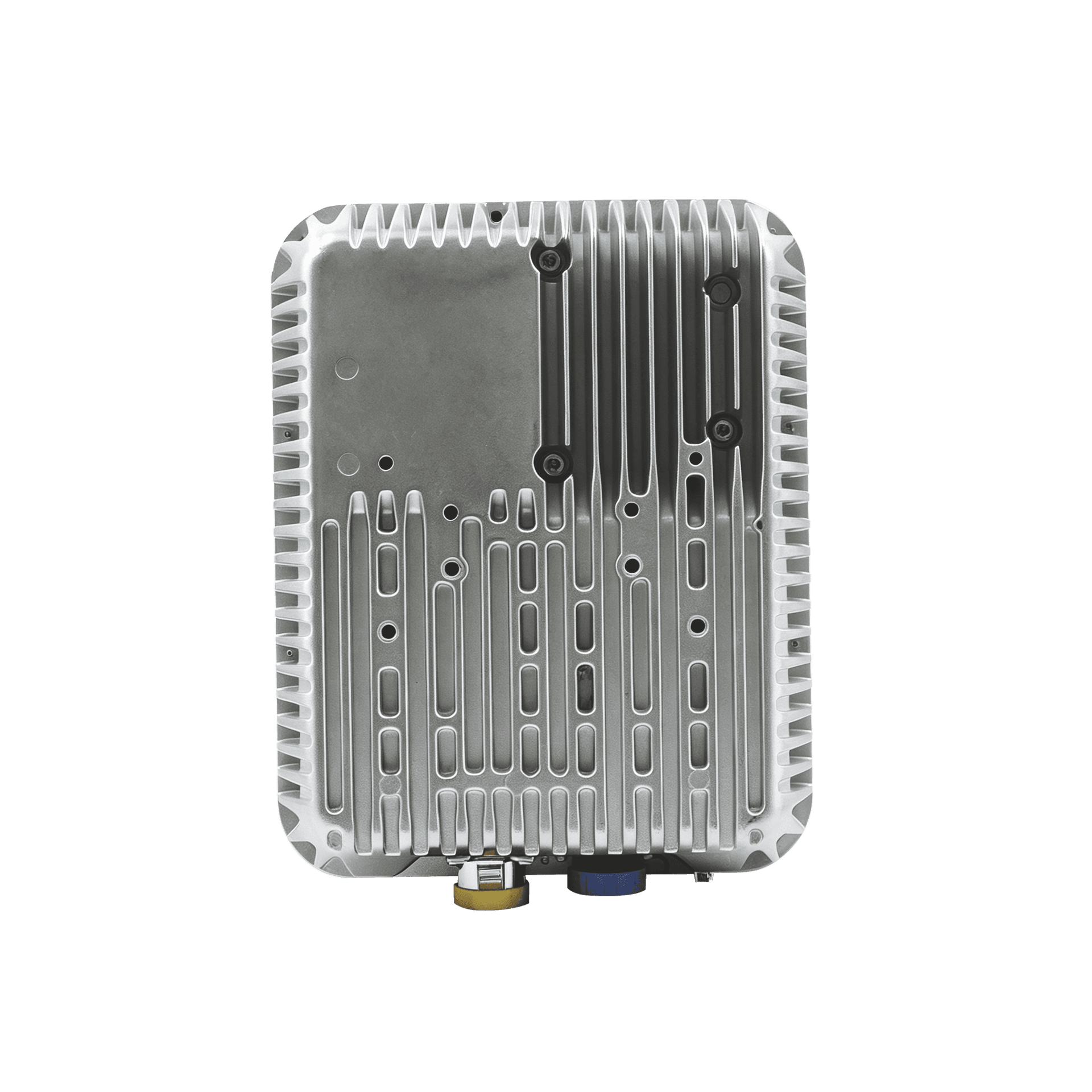

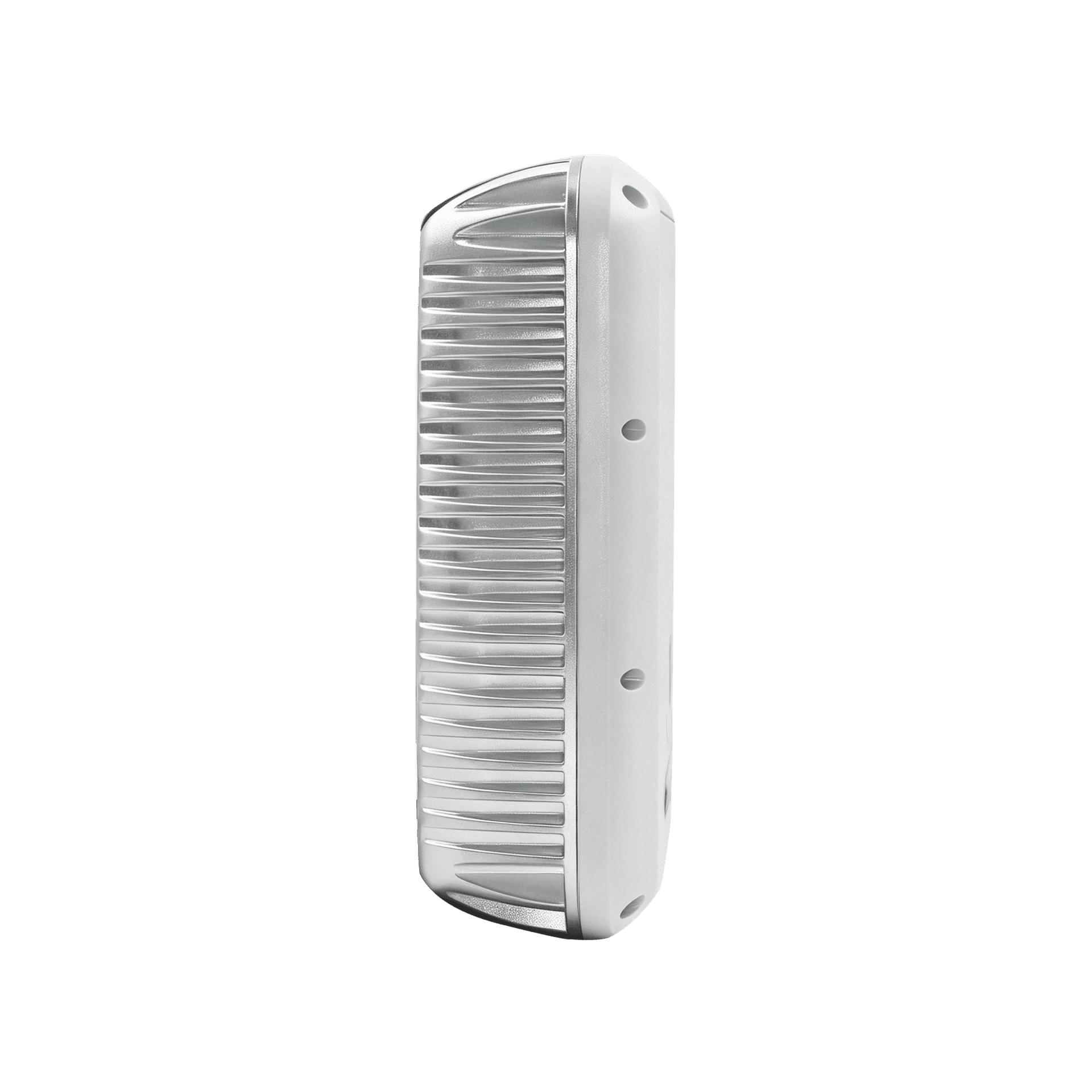

Perimeter Security Sensor

RTE P19-V/150M

Name: RTE P19-V/150M
Brand: HURYS

150-meter Pedestrian Detection Radar and Camera Integrated Machine

Security radarRadar-vision fusionPersonnel detectionFMCWCharacteristic identification

Specification

Radar Parameters

Serial No.	Parameter Item	Parameter Requirement
1	Operating Frequency Band	W Band
2	Operating System	Continuous Wave DBF System
3	Detection Range	Pedestrian: 150m, Bicycle: 200m, Electric vehicle/Motorcycle: 250m, Passenger car: 300m
4	Data Update Rate	50ms
5	Field of View	Horizontal: ±60°; Vertical: 26° (within 100m), 10° (at 300m)
6	Detection Accuracy	Range accuracy: ±0.2m,<br>Horizontal azimuth accuracy: ±0.1°@±15°, ±0.5°@±60°,<br>Speed accuracy: ±0.1km/h
7	Detection Resolution	Range resolution: 0.25m<br>Angle resolution: 1.2° (horizontal direction), 2.3° (pitch direction)<br>Speed resolution: 0.35km/h
8	Output Data	Target ID, target coordinates, target speed, alarm time
9	Supported Detectable Targets	Intrusion detection and early warning for moving targets such as pedestrians, non-motor vehicles and motor vehicles
10	Maximum Number of Trackable Targets	256
11	Speed Measurement Range	±200km/h (negative value for approaching direction, positive value for departing direction)
12	Camera Resolution	8-megapixel (3840×2160)
13	Camera Recognition Distance	100 meters (daytime)
