Intersection Traffic Sensor
RDE-02
RS-485 Data Converter
-
Supports data analysis and processing from up to 4 detectors, interfaces with traffic signal controller via RS485
-
Outputs vehicle presence, queue data, statistics, area status, etc.
-

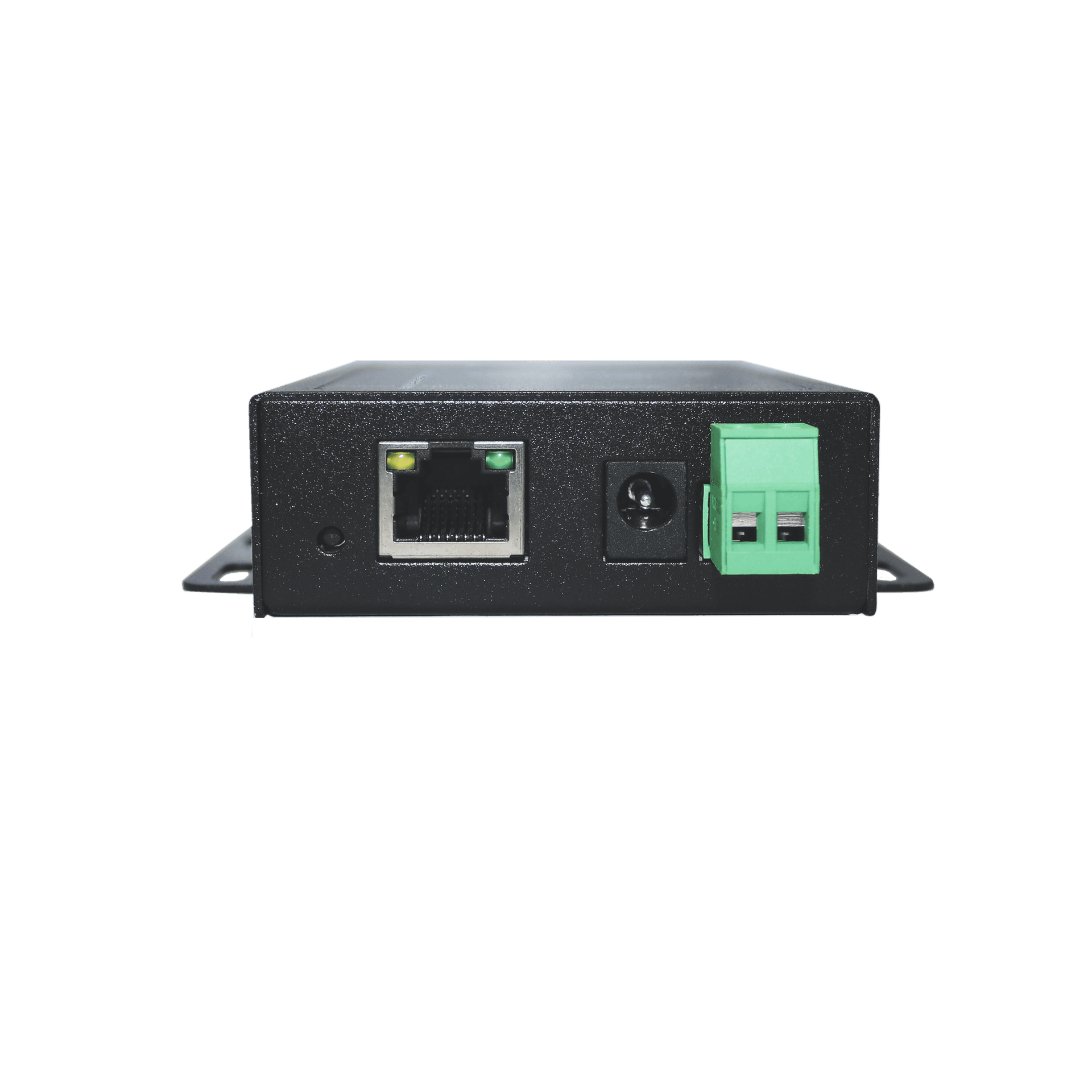

Supports network (RJ45) input and RS485 output
-
Temperature range: -40°C to +70°C
Transparent data transmission，RS485 signal controller interface，Up to 4 detectors support
SpecificationResources
Basic Parameters
| Serial No. | Parameter Item | Specification |
|---|---|---|
| 1 | Communication Interface (Input) | Ethernet (RJ45) |
| 2 | Communication Interface (Output) | RS485 |
| 3 | Maximum Number of Radars Supported | 4 units |
| 4 | Operating Temperature | -40℃ to +85℃ |
| 5 | Operating Humidity | 5% to 95% RH (non-condensing) |
| 6 | Rated Voltage | DC 5V–36V input |
| 7 | Power Consumption | 5W |
