Intersection Traffic Sensor
DTAM D09-V/50m
Radar-Video Fusion, Inductive Detection, Virtual Coil, All-Weather Operation
1. radar-video fusion, 4 lanes, 50m range, 32 objects 2. ane/section stats: volume, speed, occupancy, headway, 85th speed 3. resence & flow accuracy ≥95%, occupancy ≥85% 4. ll-weather operation, 7×24 reliable 5. ole-mounted (6-8m), remote debug & upgrade
DTAM D19-V/160m
Wide area multi-target detection,Holographic multi-dimensional perception,Multi-sensor fusion Multi-target radar,High-precision
1. ntegrated radar-video fusion for 6 lanes up to 160m 2. rovides full microwave detector data: speed, volume, headway, classification, queue, occupancy 3. high accuracy: flow ≥95%, queue & event ≥90% 4. etects pedestrians, non-motor vehicles, and all vehicle types 5. ll-weather operation unaffected by rain, snow, fog, or light; supports NTP time sync
DTAM D29-V/260m
Wide area multi-target detection,Holographic multi-dimensional perception,Multi-sensor fusion Multi-target radar,High-precision
1. ntegrated radar-video fusion for 8 lanes up to 260m 2. rovides traditional microwave data: speed, volume, headway, classification, queue, occupancy 3. high accuracy: flow ≥95%, queue & event ≥90% 4. etects pedestrians, non-motor vehicles, and all vehicle types 5. ll-weather operation unaffected by rain, snow, fog, or light; supports NTP time sync
DTAM D39-V/350m
Wide area multi-target detection,Holographic multi-dimensional perception,Multi-sensor fusion Multi-target radar ,High-precision, all-weather suitability
1. ntegrated radar-video fusion for 8 lanes up to 350m 2. rovides traditional microwave data: speed, volume, headway, classification, queue, occupancy 3. igh accuracy: flow ≥95%, queue & event ≥90% 4. etects pedestrians, non-motor vehicles, and all vehicle types 5. ll-weather operation unaffected by rain, snow, fog, or light; supports NTP time sync
RTE V29-V/300m
4D Imaging Radar-Video Fusion, High-Precision Wide-Area Coverage, Multi-Event Detection, Digital Twin
1. Higher SNR for accurate & continuous trajectory tracking 2. Up to 12 lanes, 300m range, decimeter-level ranging, 20Hz output rate 3. Detection rate >98%, effective tracking rate >95% in intersections 4. Supports multiple incidents including queue overflow alerts 5. Unaffected by lighting, rain, snow, or fog – 24/7 performance

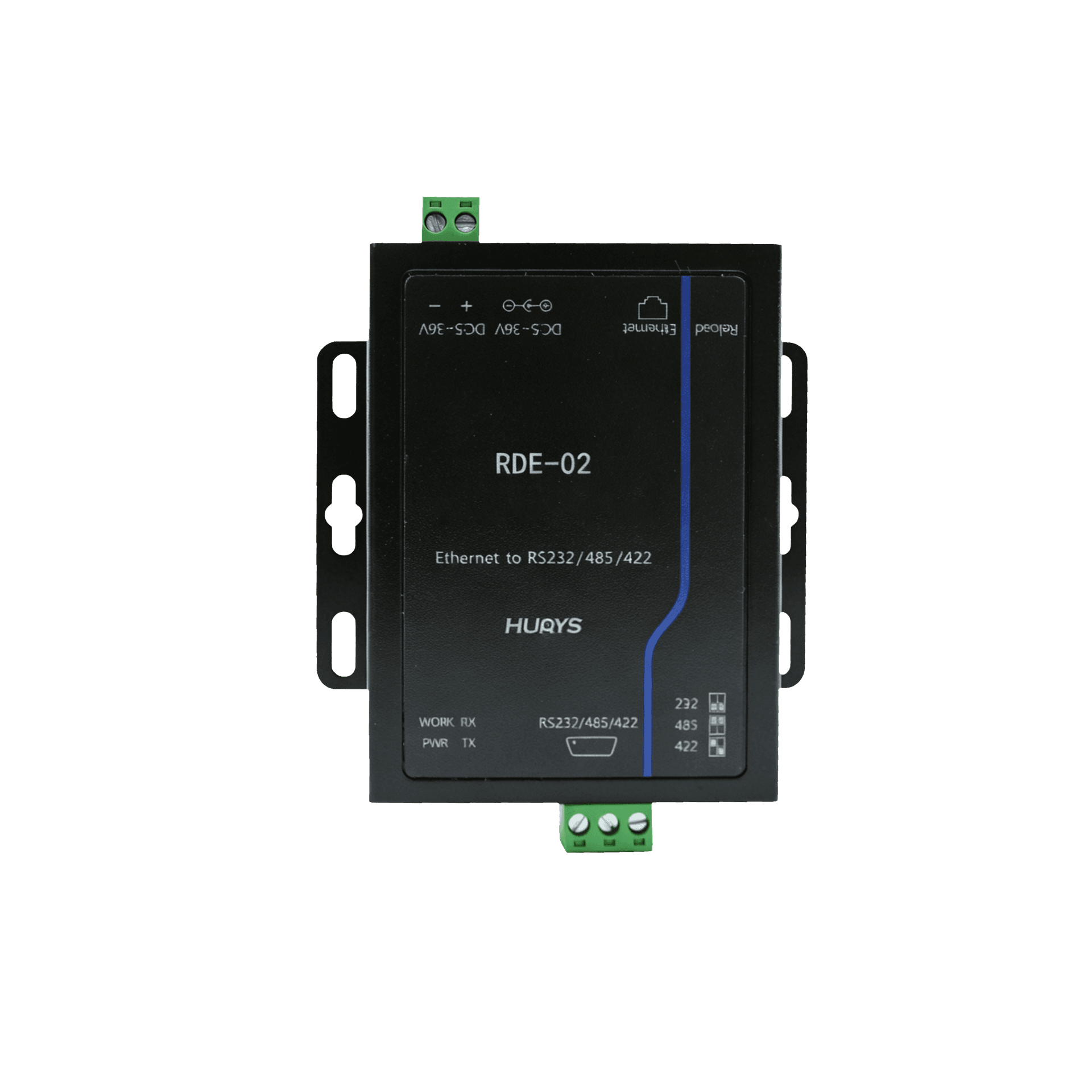

RDE-02
Transparent data transmission，RS485 signal controller interface，Up to 4 detectors support
1. Supports data analysis and processing from up to 4 detectors, interfaces with traffic signal controller via RS485 2. Outputs vehicle presence, queue data, statistics, area status, etc. 3. Supports network (RJ45) input and RS485 output 4. Temperature range: -40°C to +70°C

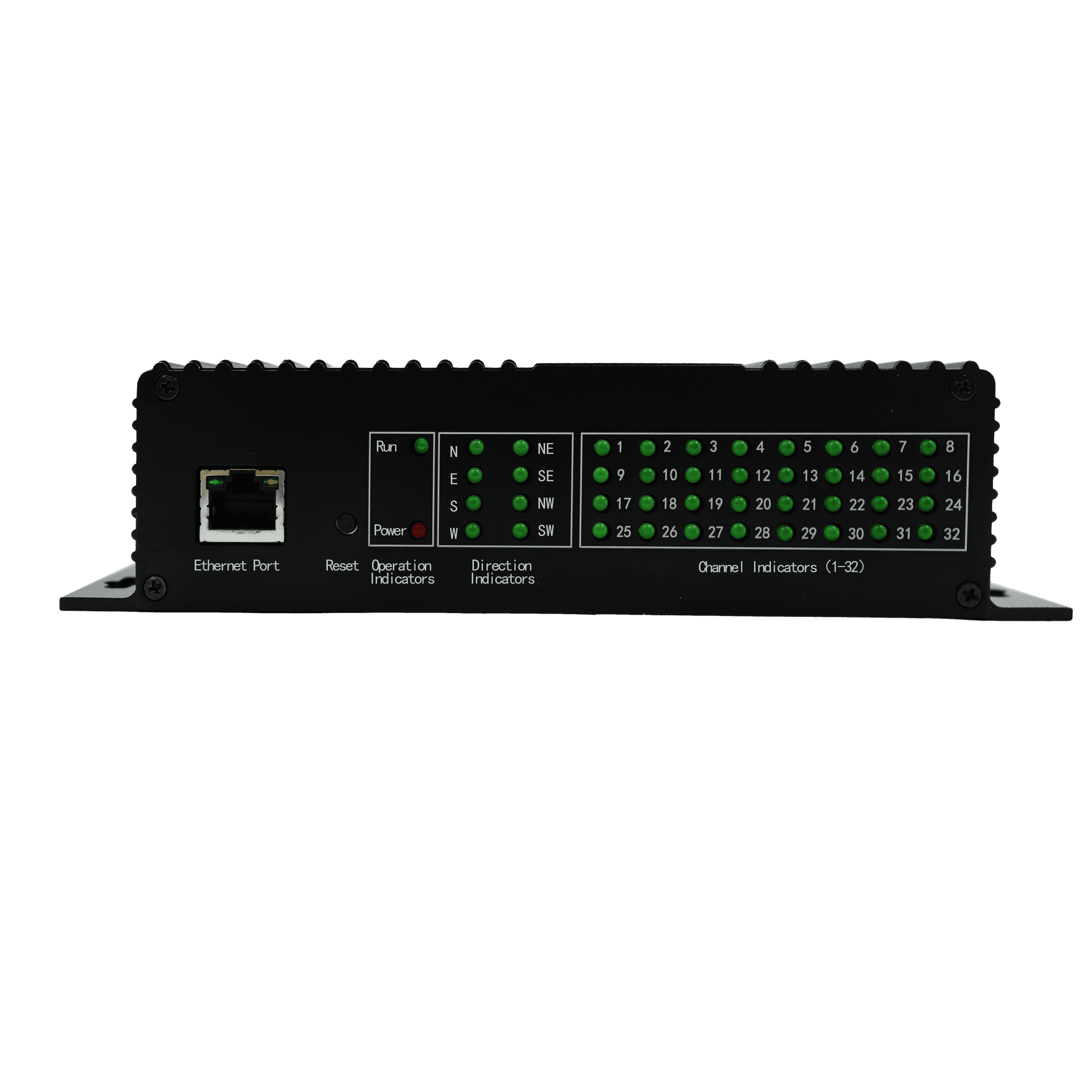

RDE-04
Compact & lightweight，Multi-channel I/O with Ethernet access，Wide temperature endurance
1. Data analysis and processing for up to 4 detectors, interfaces with signal controller via relay 2. Outputs vehicle presence 3. Supports network (RJ45) input 4. 16 relays (I/O) by default, expandable to 32 max 5. Operating temperature: -40°C to +70°C

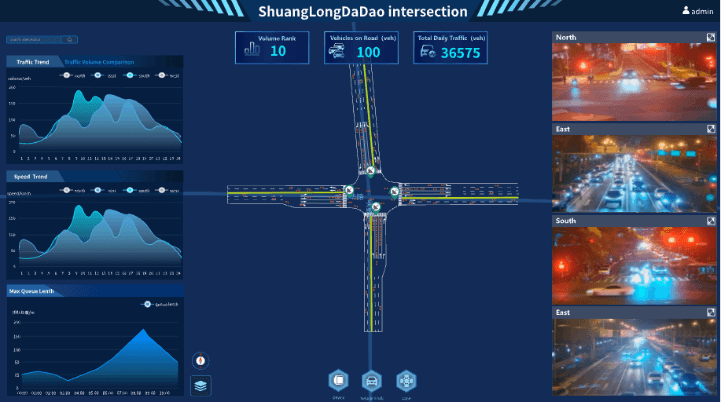

RTP Traffic Data Platform
Accurate & Reliable Sensing，Multi-dimensional Analytics，Open Collaboration，Flexible & Scalable Deployment
1. The platform provides accurate and reliable sensing by integrating radar data collection, storage, analysis, and sharing into a unified middle platform. 2. It ensures all‑weather high‑precision monitoring through multi‑target radar that operates steadily at night and in harsh weather. 3. It enables multi‑dimensional in‑depth analysis covering intersection monitoring, signal assessment, incident filing, and flow analysis, turning raw data into visual charts and decision support. 4. It supports open collaboration and data sharing via publish‑subscribe and APIs, breaking data silos to integrate with external traffic systems. 5. It offers flexible and scalable deployment with standalone, lightweight, standard, distributed, and cluster modes to accommodate various radar access needs.
