Intersection Traffic Sensor
RDE-04

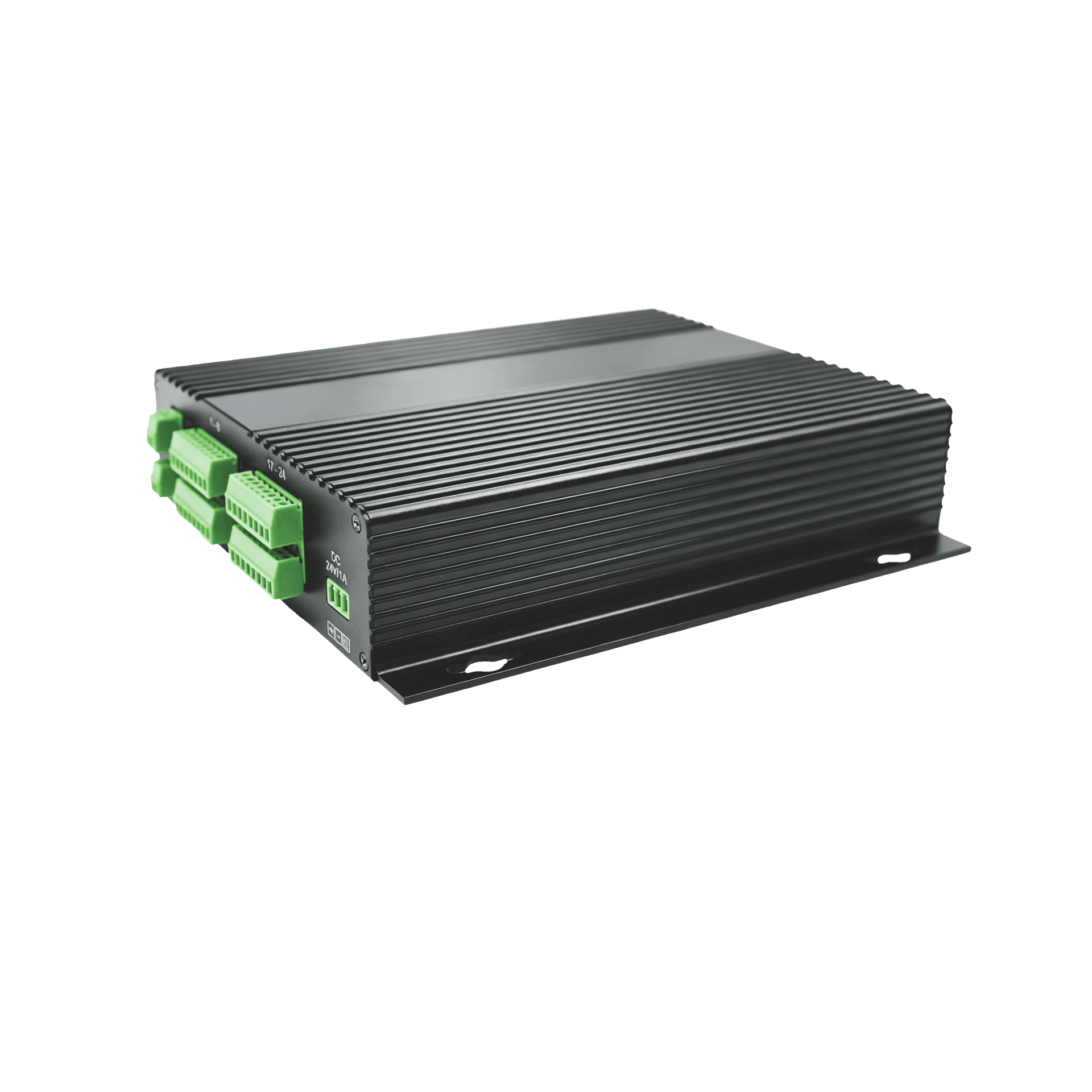

I/O Data Converter
-
Data analysis and processing for up to 4 detectors, interfaces with signal controller via relay
-
Outputs vehicle presence
-
Supports network (RJ45) input
-

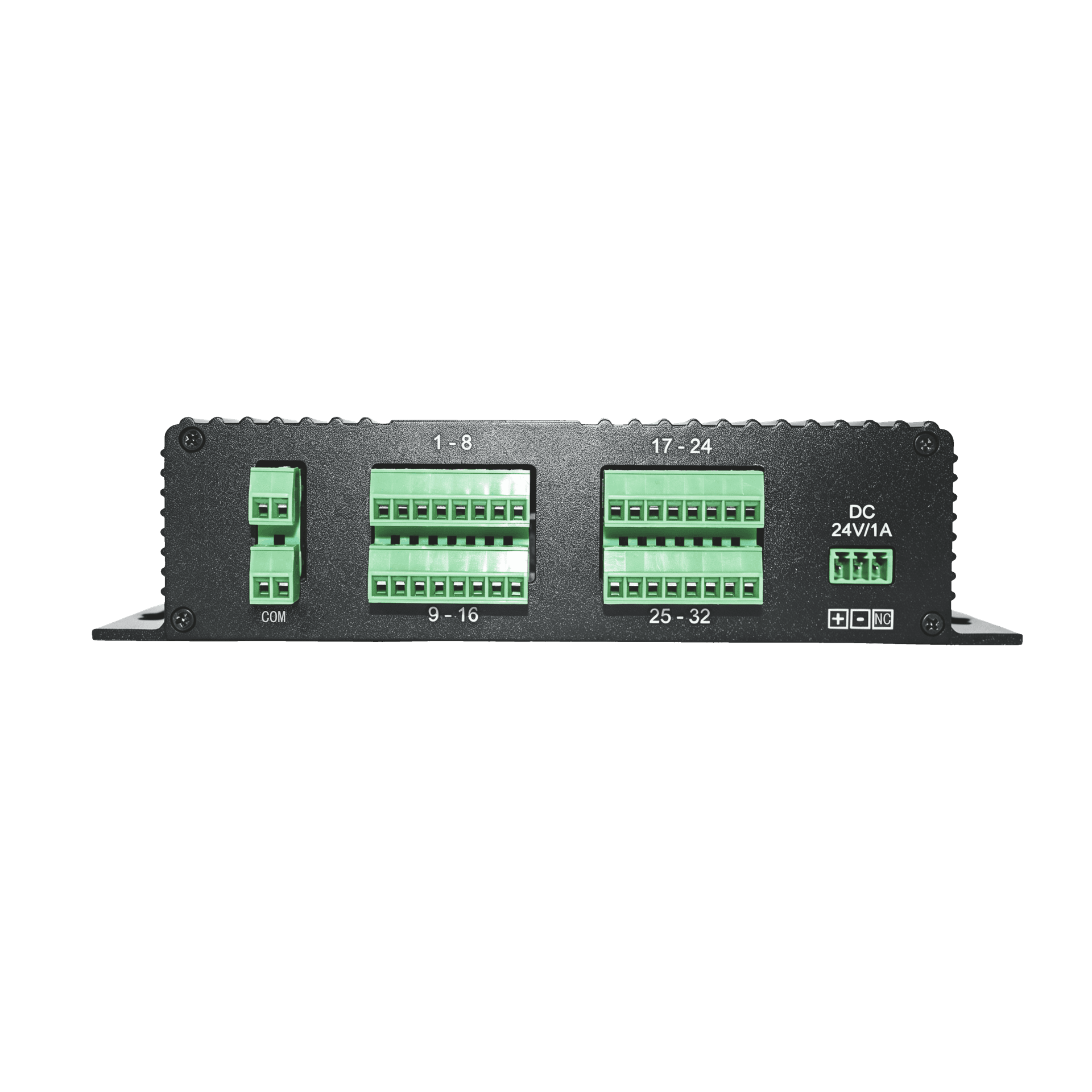

16 relays (I/O) by default, expandable to 32 max
-
Operating temperature: -40°C to +70°C
Compact & lightweight，Multi-channel I/O with Ethernet access，Wide temperature endurance
SpecificationResources
Basic Parameters
| Serial No. | Parameter Item | Specification |
|---|---|---|

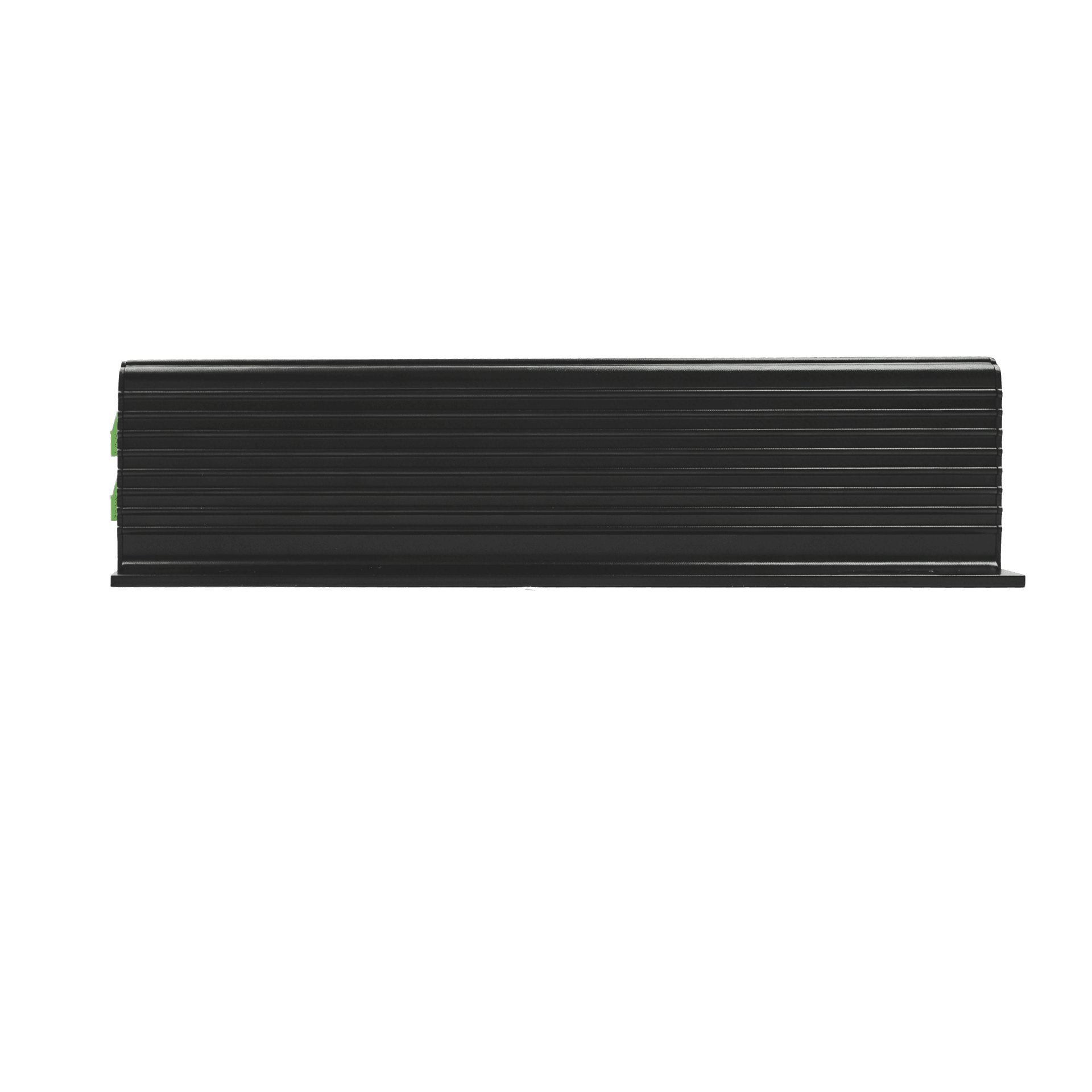

| 1 | Dimensions | 203.5 × 192.5 × 48.3 mm |
| 2 | Weight | 1 kg |
| 3 | Input Interface | Ethernet (RJ45) |
| 4 | Output Interface | I/O |
| 5 | Max Radar Connections | 4 |
| 6 | Default I/O Channels | 16 or 32 channels |
| 7 | Power Supply | DC 24V |
| 8 | Power Consumption | 5 W |
| 9 | Operating Temperature | -40℃ to +70℃ |
| 10 | Operating Humidity | 0% – 95% RH (non-condensing) |
